PEC-A5X & PEC-M16 EMC Filter Cards

Silence the Emissions,
Power the Performance

PEC-A5X & PEC-M16 EMC Filter Cards

Minimize Electromagnetic Interference
for Oversized LED Video Walls

EMC Compliance for Large LED Video Walls

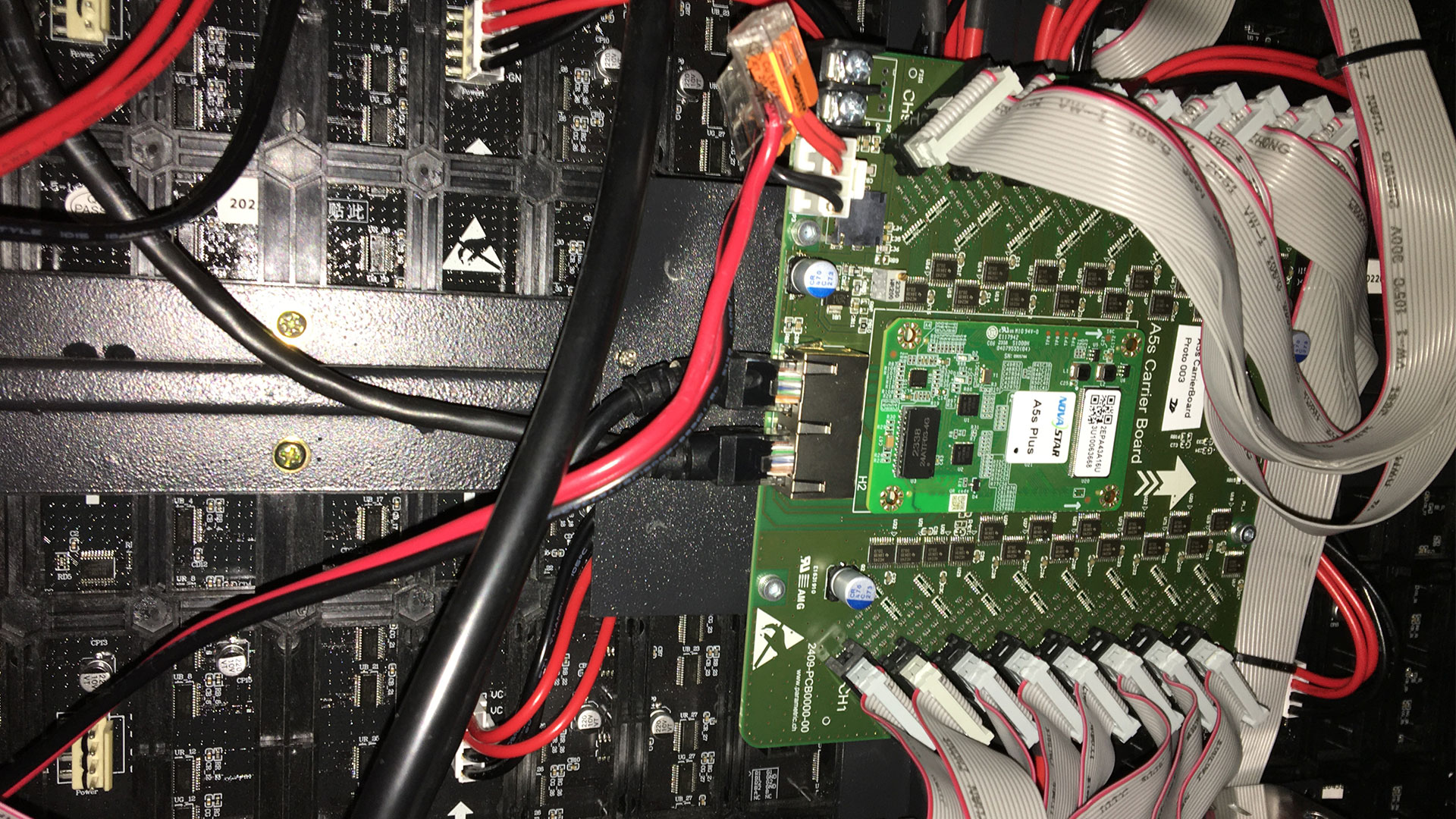

The PEC-A5X and PEC-M16 EMC Filter Cards from Parasigna are engineered to complement standard receiver cards such as the MRV41x Series or A5s. These filter cards are specifically designed to address the challenges of oversized LED video walls by reducing electromagnetic emissions, ensuring compliance with EN55032 Class A or even Class B standards.

With Parasigna’s EMC Filter Cards, you can achieve reliable performance and seamless operation even in the most demanding environments.

The Challenges of Large LED Video Walls

Oversized LED displays are engineering marvels, but they face unique challenges in demanding environments:

  • EMI Interference: Electromagnetic interference (EMI) caused by high-frequency signals (39 MHz to 1 GHz) can disrupt nearby microphones, sound systems, or sensitive electronic equipment.
  • Flickering Screens: Poor signal stability leads to flickering, undermining visual clarity and audience engagement.
  • Regulatory Non-Compliance: Without proper EMC measures, meeting Class A and Class B standards becomes a daunting task, risking penalties or operational shutdowns.

These challenges demand robust solutions, especially for applications in outdoor events, advertising, and live broadcasting.

The EMC Filter Solution

Parasigna’s PEC-A5X and PEC-M16 EMC Filter Cards provide a seamless solution by:

Plug-and-Play Design

  • Simply mount the filter cards onto the receiver cards. No reprogramming is required unless a frequency reduction is needed for control signals.

Standards Compliance

  • Fulfill stringent EN55032 Class A or B requirements, depending on the LED system configuration.

Signal Interference Mitigation

  • Effectively filter out noise and interference for stable performance.

With these advanced features, Parasigna’s PEC-A5X and PEC-M16 EMC ensure your LED display delivers reliable and stable performance every time.




Key Advantages of the PEC-A5X & PEC-M16

Advanced Signal Filtering

Add high-performance filters to all LED signals with options for cutoff frequencies at:

  • 25 MHz
  • 50 MHz
  • 75 MHz

Power Stability

Ensure a reliable power supply with integrated:

  • Input filtering for consistent performance.
  • Voltage regulation between 3.5 V and 4.8 V to minimize power fluctuations.

EMC Compliance Made Easy

Achieve reliable operation in sensitive environments by addressing system-wide electromagnetic compatibility challenges. The PEC-A5X and PEC-M16 are critical components in reducing electromagnetic interference to meet EN55032 standards.

Unleash the Potential of Your LED Displays Today

Don’t let EMI interference or flickering displays limit your possibilities.

The PEC-A5X & PEC-M16 EMC Filter Cards ensure seamless operation, compliance, and unmatched reliability for oversized LED screens in any scenario.

Ready to elevate your LED display performance? Contact us today!

Applications of the PEC-A5X & PEC-M16 EMC Filter Cards

The PEC-A5X & PEC-M16 EMC Filter Cards are the perfect choice for professionals in diverse industries:

A team of workers collaborates on constructing a large wall, ensuring stability for outdoor event displays.

Event Production

  • Provides interference-free displays for outdoor concerts and live performances.
  • Keeps large screens stable under varying environmental and electrical conditions.

Outdoor Advertising

  • Ensures vibrant and consistent visuals to captivate audiences and maximize ad impact.
  • Protects against environmental noise and signal disruptions in busy urban areas.
A large outdoor screen displaying stock market data, designed for vibrant visuals and resilience against urban noise.
A person captures a concert on video, ensuring smooth visuals for live broadcasting with precision and reliability.

Live Broadcasting

  • Enables smooth display transitions and uninterrupted visuals during live coverage.
  • Meets the rigorous demands of broadcasting environments where precision and reliability are critical.

Event Production

  • Provides interference-free displays for outdoor concerts and live performances.
  • Keeps large screens stable under varying environmental and electrical conditions.
A team of workers collaborates on constructing a large wall, ensuring stability for outdoor event displays.

Outdoor Advertising

  • Ensures vibrant and consistent visuals to captivate audiences and maximize ad impact.
  • Protects against environmental noise and signal disruptions in busy urban areas.

Live Broadcasting

  • Enables smooth display transitions and uninterrupted visuals during live coverage.
  • Meets the rigorous demands of broadcasting environments where precision and reliability are critical.

Why Choose Parasigna’s PEC-A5X & PEC-M16 EMC Filter Cards?

The complexity of achieving EMC compliance grows with the size and configuration of LED video walls. Manufacturers often showcase individual modules for compliance but fail to address the challenges posed by real-world setups.

Parasigna’s EMC Filter Cards bridge this gap with:

  • Precise Filtering: Minimize signal noise and interference effectively.
  • Stability: Provide a steady power supply to prevent flickering or interruptions.
  • Ease of Compliance: Simplify adherence to Class A or B EMC standards, regardless of your screen's complexity.

Unleash the Potential of Your LED Displays Today

Don’t let EMI interference or flickering displays limit your possibilities.

The PEC-A5X & PEC-M16 EMC Filter Cards ensure seamless operation, compliance, and unmatched reliability for oversized LED screens in any scenario.

Ready to elevate your LED display performance? Contact us today!




Technical specifications

Specification
PEC-A5X & PEC-M16
Compatible Receiver Cards
MRV41x Series, A5s
Primary Function
Reduces electromagnetic emissions for large LED video walls
Signal Filtering Frequencies
25 MHz, 50 MHz, 75 MHz
Power Input Filtering
Integrated
Voltage Regulation
Integrated
EMC Compliance Standards
EN55032 Class A or Class B (depending on system configuration)
Installation
Plug-and-play; mounts onto receiver cards
Reprogramming Requirements
None (except for potential frequency reduction of control signals)
Operating Environment
Designed for challenging conditions with oversized LED video walls
Recommended Applications
Event production, outdoor advertising, live broadcasting
Supported Receiver Cards
MRV416, MRV412, A5s
Key Differentiator
High-precision filtering for custom, large-scale installations
Specification
PEC-A5X
PEC-M16
Physical Dimensions

70 mm x 45 mm x 15 mm

144 mm x 160 mm x 15 mm

Weight
200 g
220 g

Unleash the Potential of Your LED Displays Today

Don’t let EMI interference or flickering displays limit your possibilities.

The PEC-A5X & PEC-M16 EMC Filter Cards ensure seamless operation, compliance, and unmatched reliability for oversized LED screens in any scenario.

Ready to elevate your LED display performance? Contact us today!
